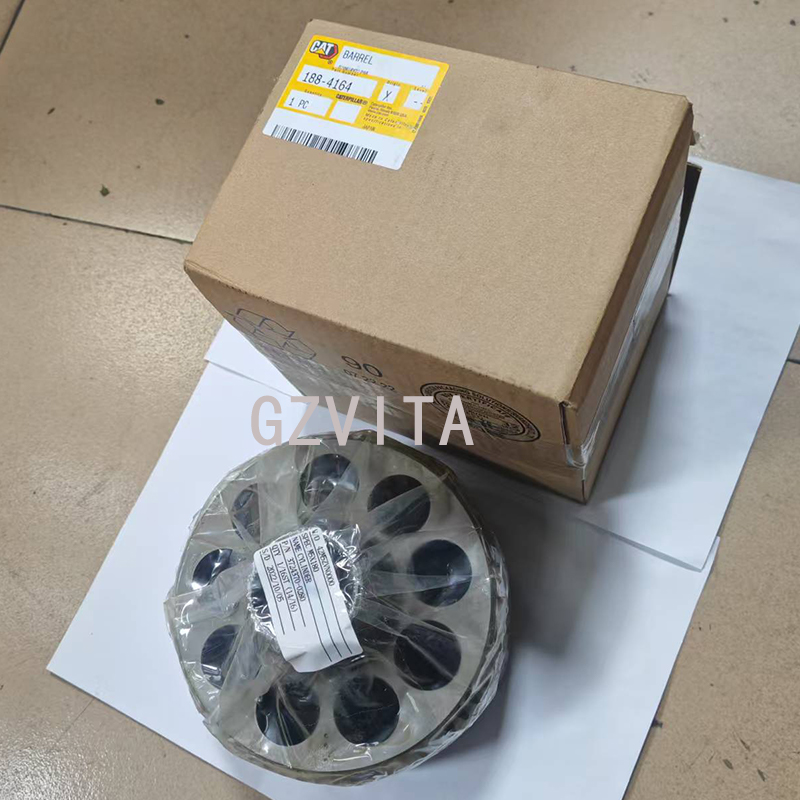

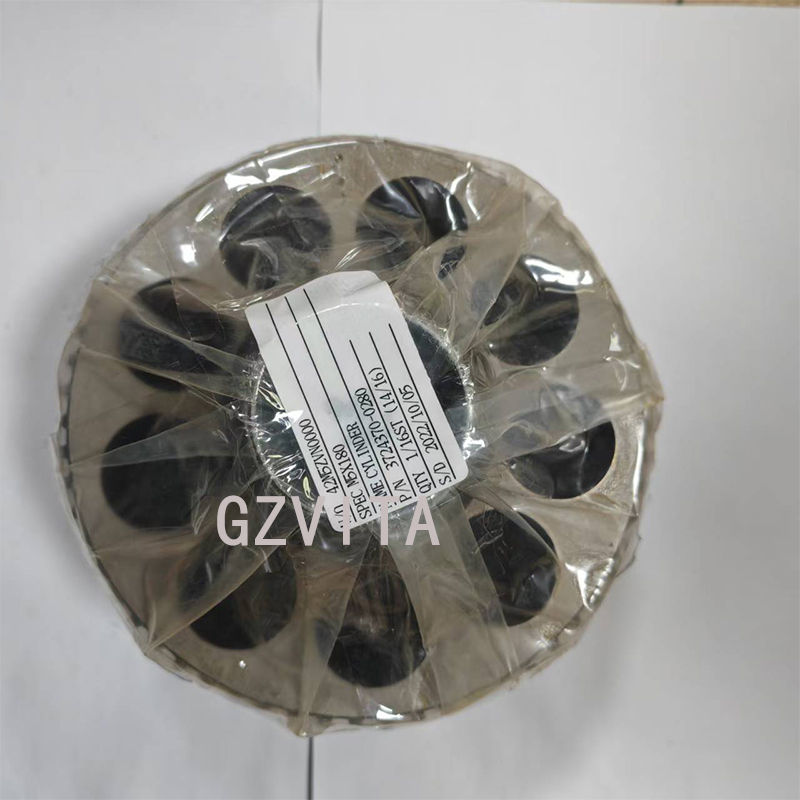

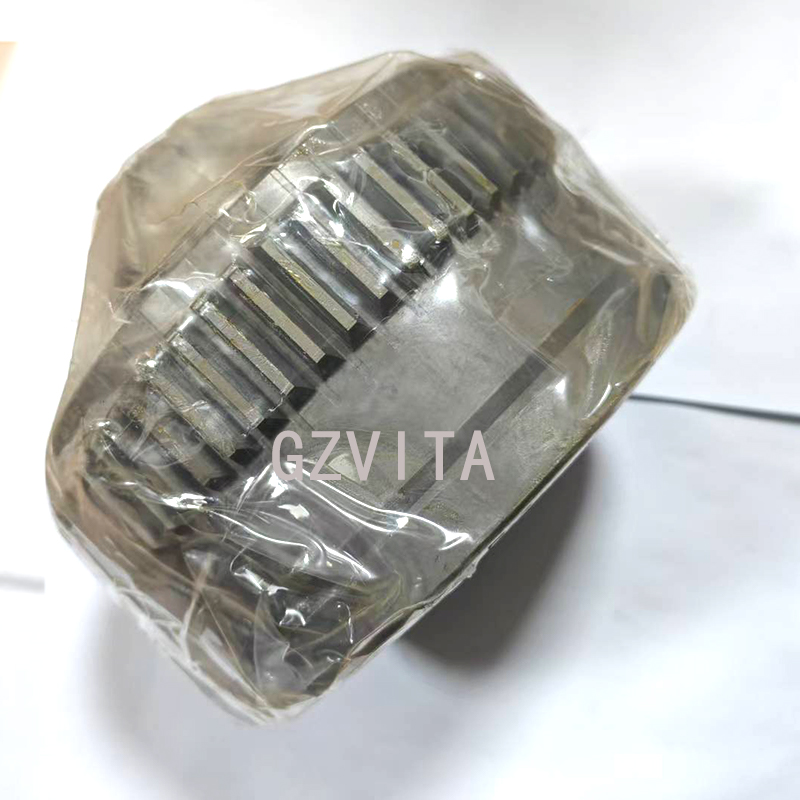

154mm Long Swing Motor Barrel 188-4164 For CAT336E TK372 1884164

Introduction to Swing Motor Barrel for Machinery

The swing motor barrel is a critical component in the hydraulic system of excavators and other heavy machinery that require rotational movement. It plays a vital role in enabling the machine to swing its upper structure (the cab and boom) relative to the undercarriage. Here’s an overview of the swing motor barrel, its function, and its importance:

1. Function of the Swing Motor Barrel:

Hydraulic Power Transmission: The swing motor barrel is part of the swing drive system, which converts hydraulic energy into mechanical energy. It receives hydraulic fluid from the hydraulic pump and uses it to create rotational motion.

Rotational Movement: The swing motor barrel allows the upper structure of the excavator to rotate around a vertical axis. This movement is essential for various tasks, such as digging, lifting, and placing materials.

2. Components of the Swing Motor Barrel:

Motor Housing: The outer casing that houses the internal components of the swing motor.

Gear Mechanism: Inside the barrel, there are gears that help amplify the torque generated by the hydraulic motor, allowing for smooth and controlled rotation.

Seals and Bearings: These components ensure that the hydraulic fluid remains contained within the system and that the rotational movement is smooth and efficient.

3. Importance of the Swing Motor Barrel:

Operational Efficiency: A well-functioning swing motor barrel allows for precise and efficient movement of the excavator’s upper structure, enhancing overall productivity on the job site.

Versatility: The ability to swing the upper structure enables the excavator to perform a wide range of tasks without needing to reposition the entire machine, making it more versatile in various applications.

Stability and Control: The swing motor barrel contributes to the stability of the excavator during operation. It allows for controlled movements, which is crucial when working on uneven terrain or in tight spaces.

4. Maintenance Considerations:

Regular Inspections: Routine checks for leaks, wear, and proper lubrication are essential to ensure the swing motor barrel operates effectively.

Hydraulic Fluid Quality: Maintaining the quality of the hydraulic fluid is crucial, as contaminated or degraded fluid can lead to reduced performance and potential damage to the swing motor barrel.

5. Conclusion:

The swing motor barrel is a vital component of excavators and similar machinery, enabling essential rotational movement that enhances operational efficiency and versatility. Understanding its function and importance can help operators and maintenance personnel ensure the longevity and reliability of the equipment. Regular maintenance and attention to the hydraulic system will contribute to optimal performance and reduced downtime on the job site.
