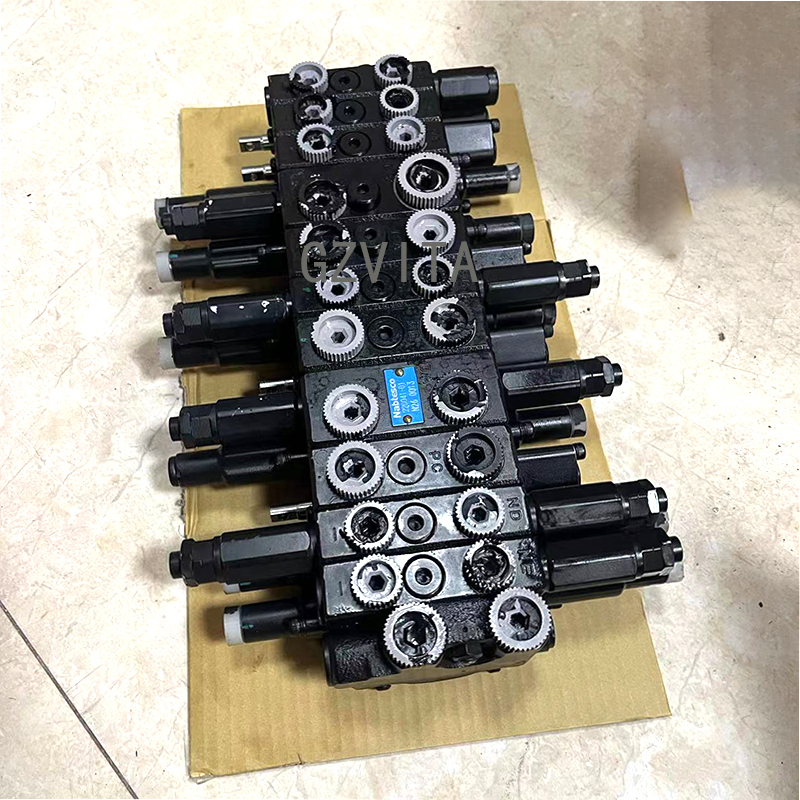

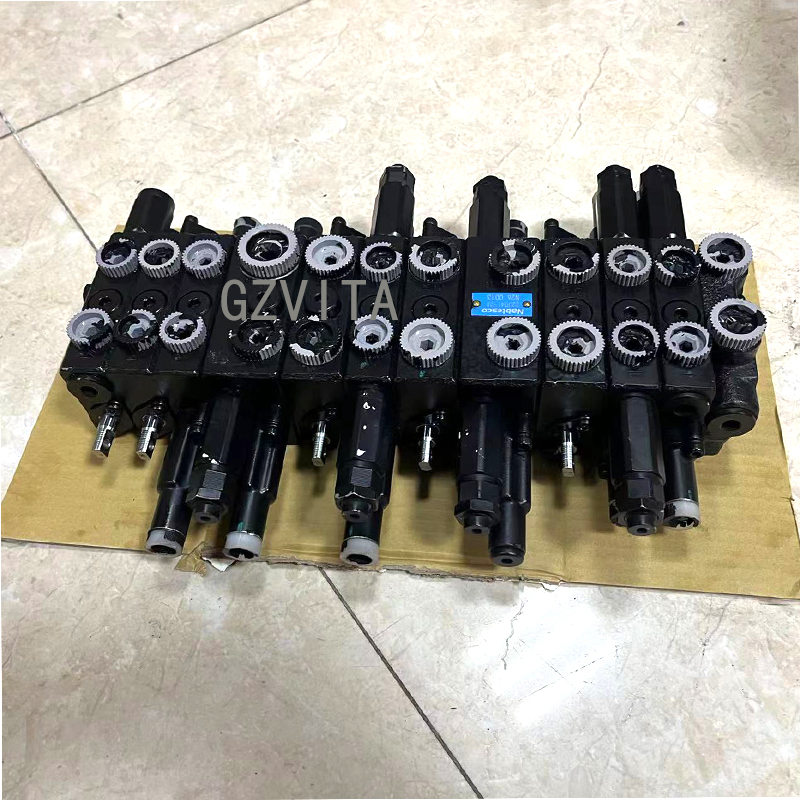

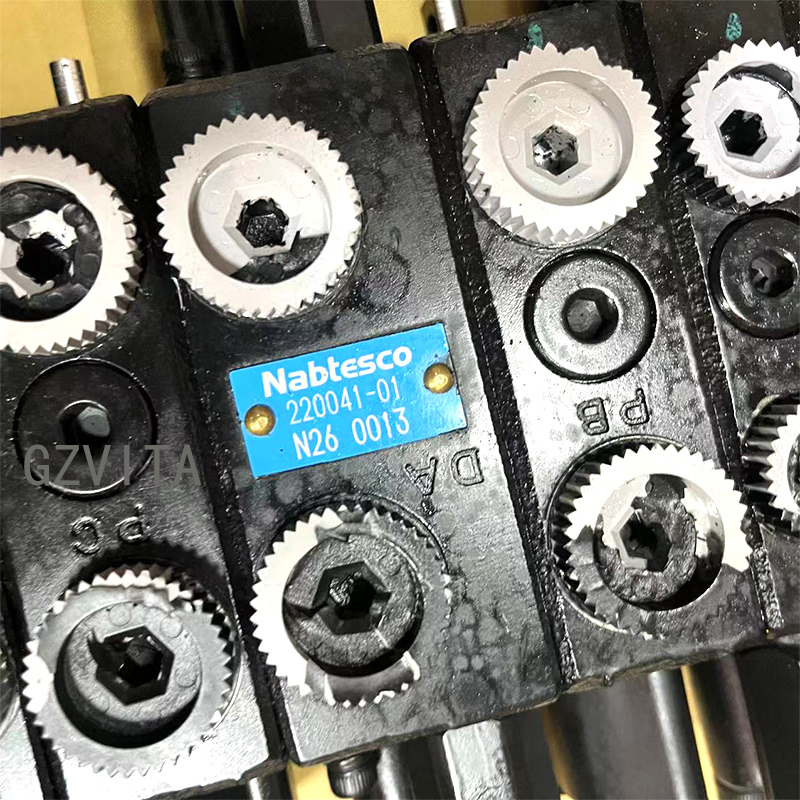

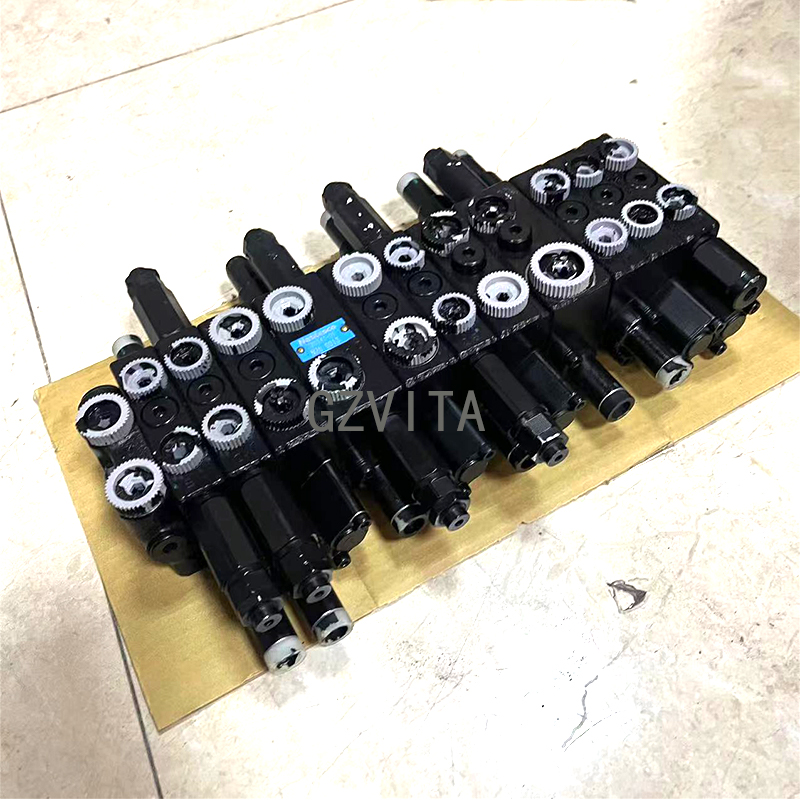

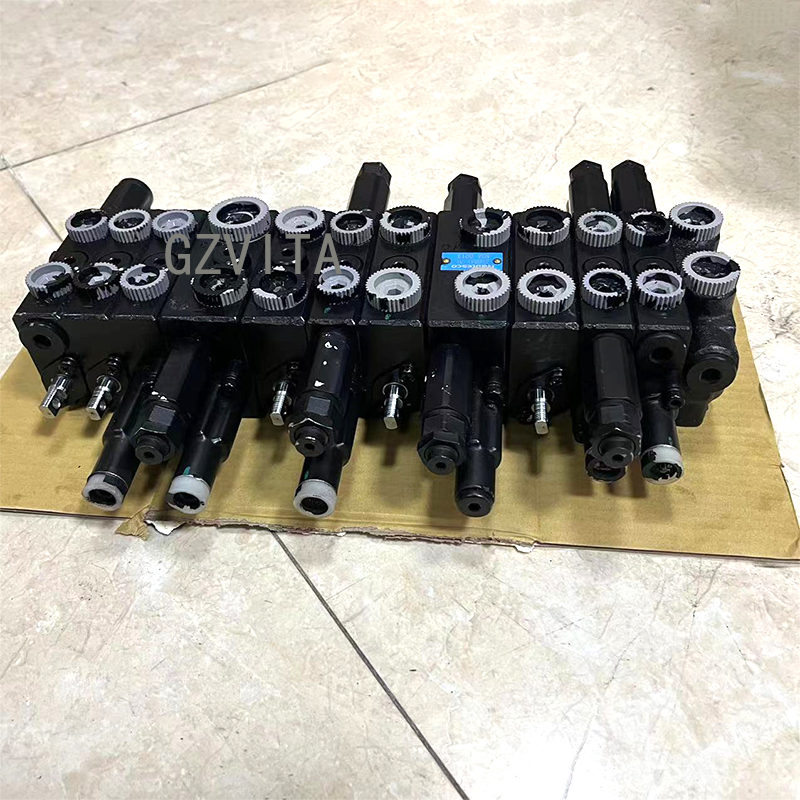

220041-01 Distribution valve for Mini excavator Kubota U15 Sany 16 18 LinGong 15 Distributor

Installing a distribution valve on a Sany 16 excavator requires careful attention to detail and adherence to safety protocols. Here’s a step-by-step guide to help you with the installation:

Tools and Materials Needed:

New distribution valve

Wrenches and sockets

Screwdrivers

Torque wrench

1. Hydraulic fluid (if necessary)

Clean rags

Safety gloves and goggles

Installation Steps:

Safety First:

Ensure the excavator is on a stable surface and turned off.

Engage the parking brake and remove the key from the ignition.

Wear safety gloves and goggles to protect yourself.

Access the Distribution Valve:

Depending on the model, you may need to remove covers or panels to access the distribution valve. Use the appropriate tools to do this carefully.

Disconnect Hydraulic Lines:

Before removing the old distribution valve, carefully disconnect the hydraulic lines connected to it. Use a rag to catch any hydraulic fluid that may leak out.

Label the lines if necessary to ensure correct reinstallation.

Remove the Old Distribution Valve:

Unscrew and remove the bolts or fasteners holding the old distribution valve in place. Keep these fasteners, as you will need them for the new valve.

Carefully lift the old valve out of its mounting position.

Prepare the New Distribution Valve:

Compare the new distribution valve with the old one to ensure they are identical in size and configuration.

If necessary, apply a small amount of hydraulic sealant to the threads of the new valve to prevent leaks.

Install the New Distribution Valve:

Position the new distribution valve in place and secure it with the original bolts or fasteners. Tighten them to the manufacturer’s specified torque settings using a torque wrench.

Reconnect Hydraulic Lines:

Reconnect the hydraulic lines to the new distribution valve, ensuring that they are connected to the correct ports as labeled earlier.

Tighten the fittings securely to prevent leaks.

Check for Leaks:

Before starting the excavator, double-check all connections and fittings to ensure they are tight and secure.

Refill Hydraulic Fluid (if necessary):

If you lost any hydraulic fluid during the process, refill the hydraulic reservoir to the appropriate level.

Test the System:

Start the excavator and allow it to run for a few minutes. Operate the hydraulic functions to ensure everything is working correctly.

Check for any leaks around the distribution valve and connections.

Reassemble Any Covers or Panels:

If you removed any covers or panels to access the distribution valve, reattach them securely.

Final Checks:

After installation, monitor the excavator during its first few hours of operation to ensure everything is functioning properly and there are no leaks.

If you encounter any issues or are unsure about any step, consult the Sany excavator service manual or contact a professional technician for assistance.
