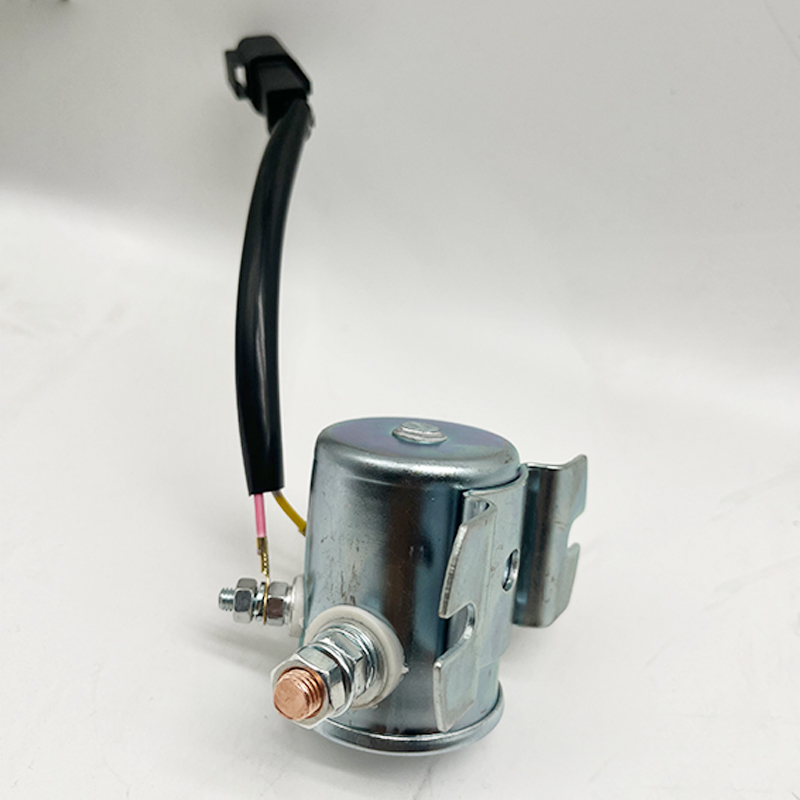

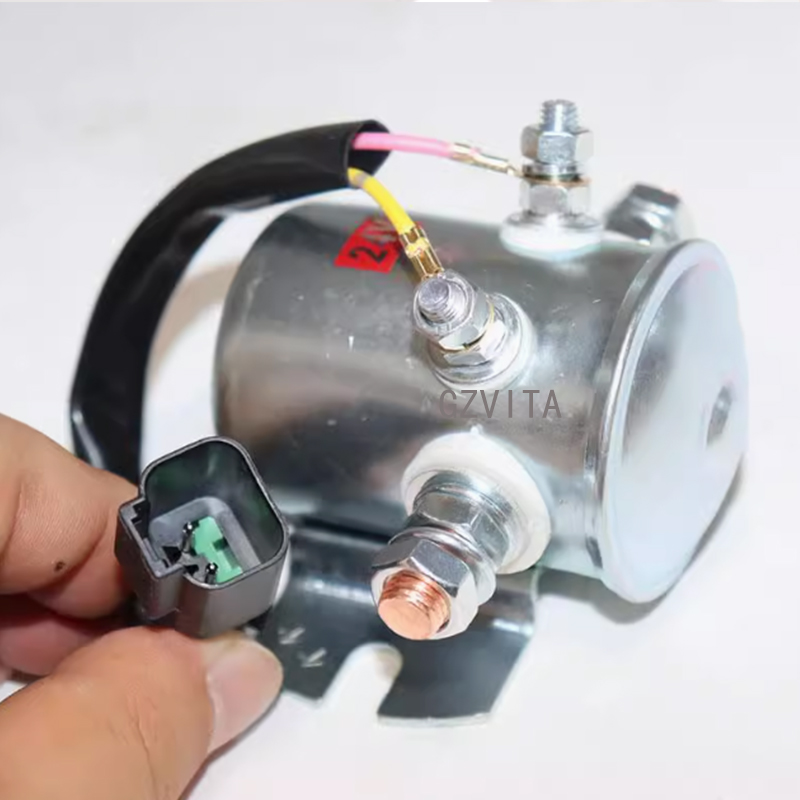

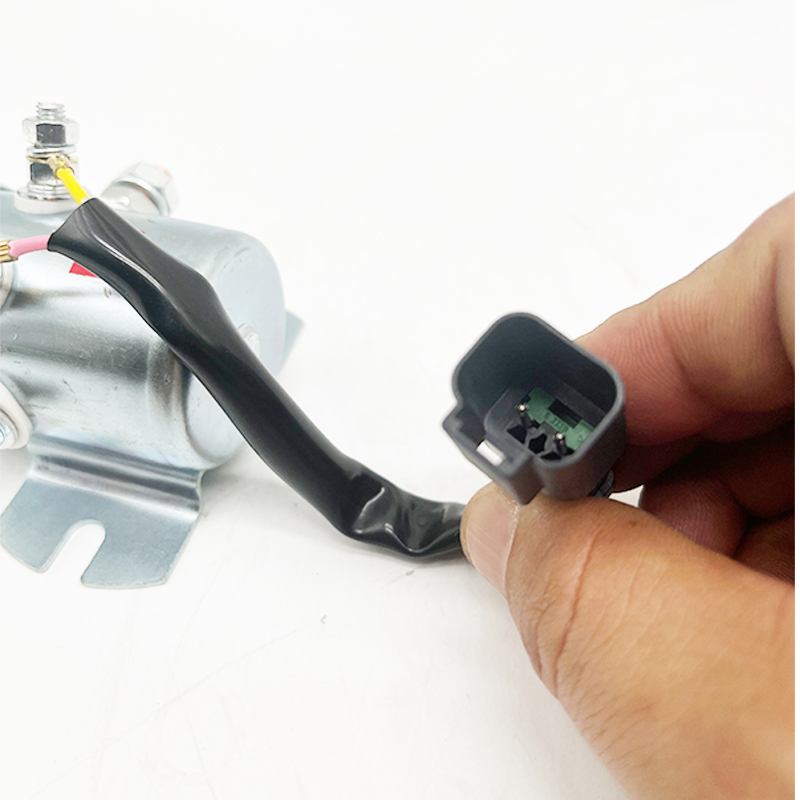

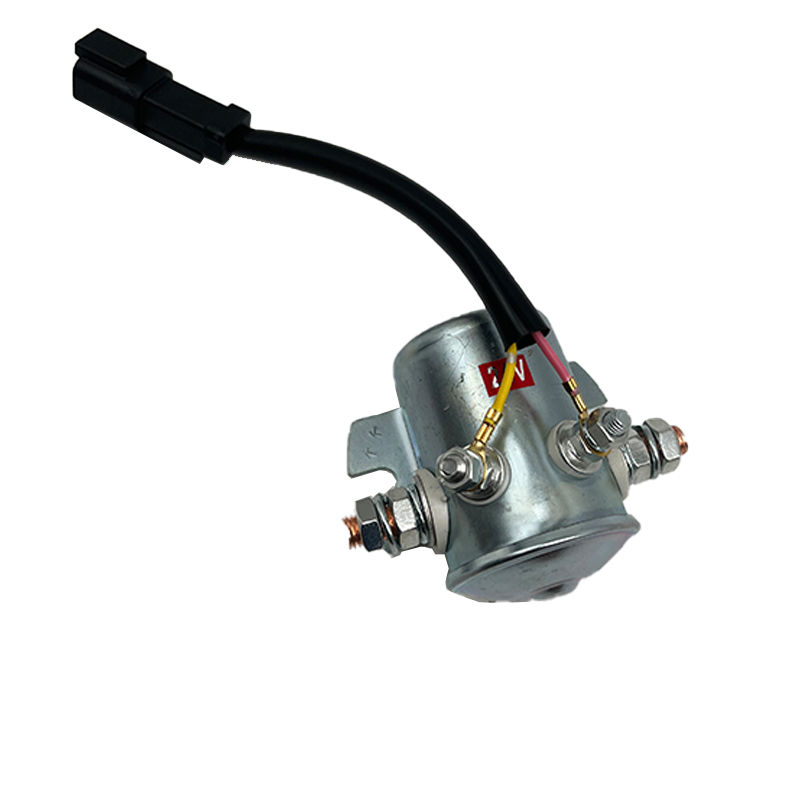

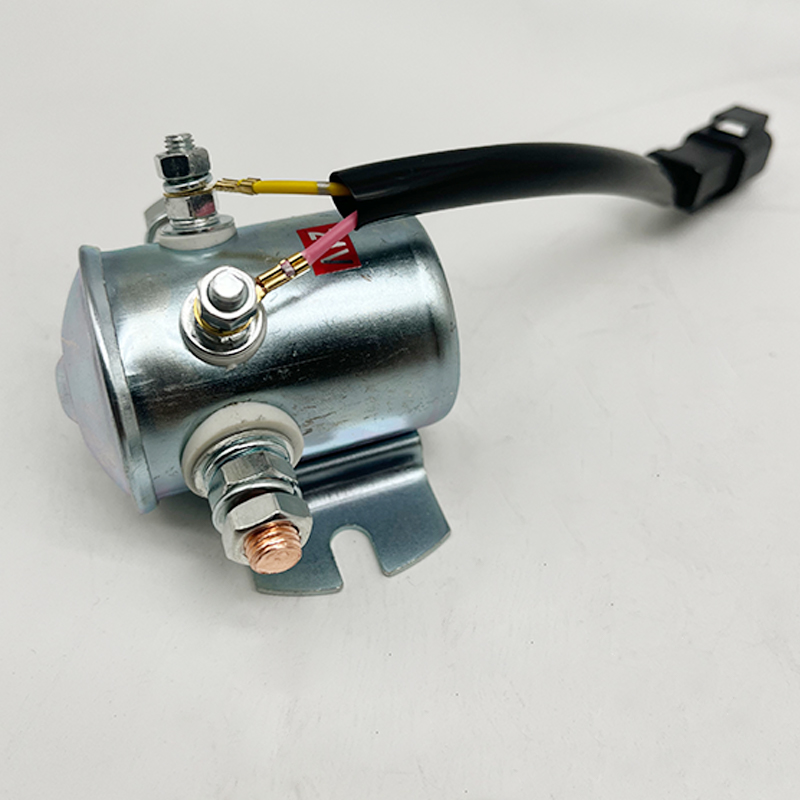

24V Air Conditioner Magnetic Switch 398-0940 For M325D C15 C9 Engine

A 24V air conditioner magnetic switch, often referred to as a contactor or relay, is a crucial component in the operation of air conditioning systems. It plays a significant role in controlling the electrical power to the compressor and other components of the air conditioning unit. Here’s an overview of its purpose, functionality, and importance:

 The primary function of a magnetic switch in an air conditioning system is to control the flow of electricity to the compressor and other high-voltage components. It acts as a switch that can handle high current loads while being controlled by a low-voltage signal (24V).

Electromagnetic Operation: The magnetic switch operates using an electromagnetic coil. When a 24V signal is applied to the coil, it generates a magnetic field that pulls in a set of contacts, closing the circuit and allowing high voltage to flow to the compressor.

Control Circuit: The 24V control circuit is typically powered by a transformer, which steps down the voltage from the main power supply. This allows for safe operation and control of the air conditioning system.

Applications: 24V magnetic switches are commonly used in residential and commercial air conditioning systems, heat pumps, and refrigeration units. They are essential for the operation of both central and split-system air conditioners.

Safety: By using a low-voltage control circuit, the magnetic switch enhances safety, reducing the risk of electric shock during operation and maintenance.

Reliability: Magnetic switches are designed to handle high current loads, ensuring reliable operation of the air conditioning system. They can withstand the wear and tear associated with frequent cycling on and off.

Energy Efficiency: Properly functioning magnetic switches contribute to the overall energy efficiency of the air conditioning system by ensuring that the compressor operates only when needed.

Regular inspection of the magnetic switch is important to ensure it is functioning correctly. Signs of wear, such as burnt contacts or failure to engage, may indicate the need for replacement.
